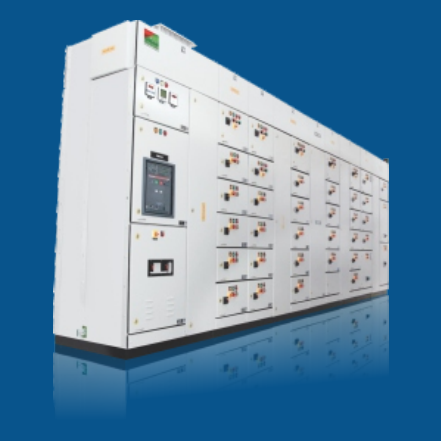

MCC PANEL

We offer all range of Miniature Case Circuit Breakers (MCCB). MCCB derive from two families of apparatus: the well-known and established Isomax S series and the recent but much awarded Tmax series. The MCCB’s are used in industrial and civil low voltage plants with service currents from 1 to 1000 A. They are used in direct and alternating current distribution switchgear for motor protection, generators, capacitors and for end users.

Application

Protection & Motor Control
 Operational Current
4000 A
Operational Voltage
415 V
 Insulation Voltage
690 V
 Ambient Temperature
45 °C
Form of Separation
Form 3b/4b
Type Test Performed
Short Circuit withstand / Temp Rise  withstand Degree of Protection
 Configuration
Fixed & Draw out

Degree of Protection

 IP: 54 (on request)
